KEY FEATURE 1 – Range Versatility

It enjoys a dual-track design engineered to cater to an extensive array of diametral size. By choosing the diameter range within the artisJet Workstation, the printer can automatically determine the settings for the print head.

Figure 1 – 1. Wider Section of Rotary Device (35 mm- 120 mm); 2. Thinner Section of Rotary Device (15 mm – 35 mm).

Figure 2 – Thinner rotary section for small items such as lipsticks; Wider rotary section for bigger rotary items such as tumblers, cans, soap bottles etc.

KEY FEATURE 2 – Shape Adaptability

Facilitating more flexibility, an auxiliary mobile component can be attached to accommodate irregular shapes for rotary printing. This component, equipped with dual small wheels, effectively secures irregular cylindrical objects, catering to diameter variations with finesse.

The component can be slid freely across the rotary track to accommodate different dimensions. The height and position of the component can be adjusted based on the dimensions of specific rotary objects.

KEY FEATURE 3 – Multi-Object Customization

Supplementary jigs atop the primary rotary jig can also be custom-made to further accelerate the printing process. This bespoke function facilitates simultaneous fixation of multiple cylindrical objects on a single track.

Tailored to streamline your workflow, these customizable jigs empower you to designate specific objects for batch production. Tailor-made extra jigs can be fixed to the ROT-360 to secure each object at predetermined intervals. Take these lipstick tubes as an example:

KEY FEATURE 4 – Precision Position Locking

Elevating precision to new heights, an additional customizable component in rotary device can be provided to secure the exact positioning of objects. The component has a dual-sided configuration, a rubber ring on one side (1) and a metallic fixture on the other (2). The direction can be easily switched based on the shape and material of the object.

By positioning the object against it, this component helps ensure consistent alignment and flawless rotary print execution. The specifications of this component can be tailored to align with the distinctive parameters of the cylindrical object to be printed.

KEY FEATURE 5 – Improved Rubber Rings

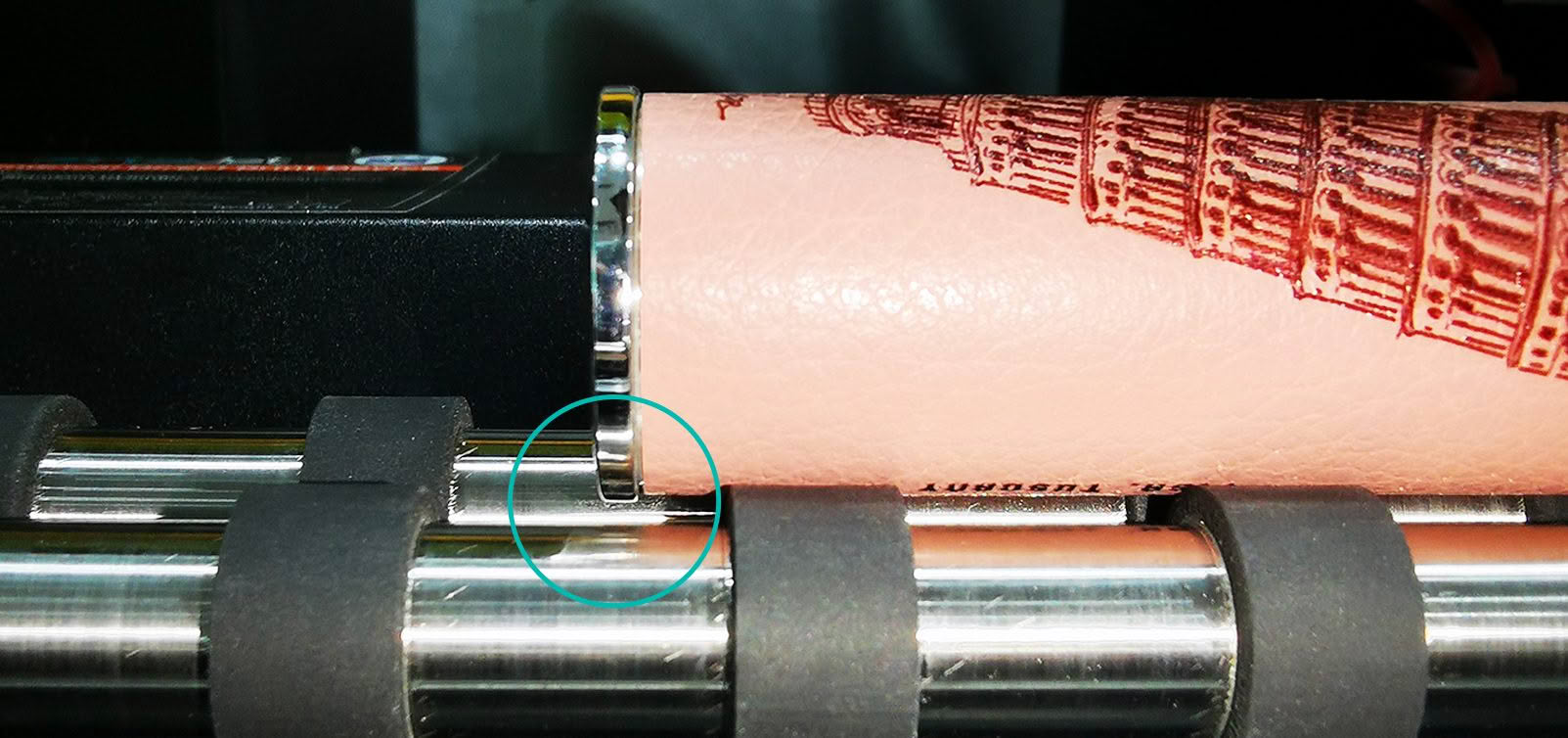

Addressing intricate geometries for rotary printing, the new ROT-360 offers strategically spaced rubber rings instead of the conventional flat rubber rings. This innovation is invaluable when rotary objects have protruding areas (less than 2mm in height), guaranteeing seamless rotations and smoother printing process.

KEY FEATURE 6 – Instant Plug-and-Play

The new rotary 360 attachment offers a seamless plug-and-play experience. It comes equipped with a dedicated connection cable that effortlessly fits into the compatible printer’s designated port. All you need to do is insert the cable, select the 360-degree rotary mode within the artisJet Workstation software, and the printer will intuitively be recognized and activate the rotary printing device.

More Valuable Features with the new 360 device for rotary printing items

Independent Moving Mechanism – Printed objects are rotated independently from the printer’s platform, enhancing precision and reducing the likelihood of printing errors.

Auto-Position Detection – The printer can automatically detect the rotary jig’s position, which streamlines and simplifies the object placement process.

Auto-Height Adjustment – The printer can easily detect and measure the object’s height in conjunction with the device, eliminating the need for manual operation or breaking the print head.

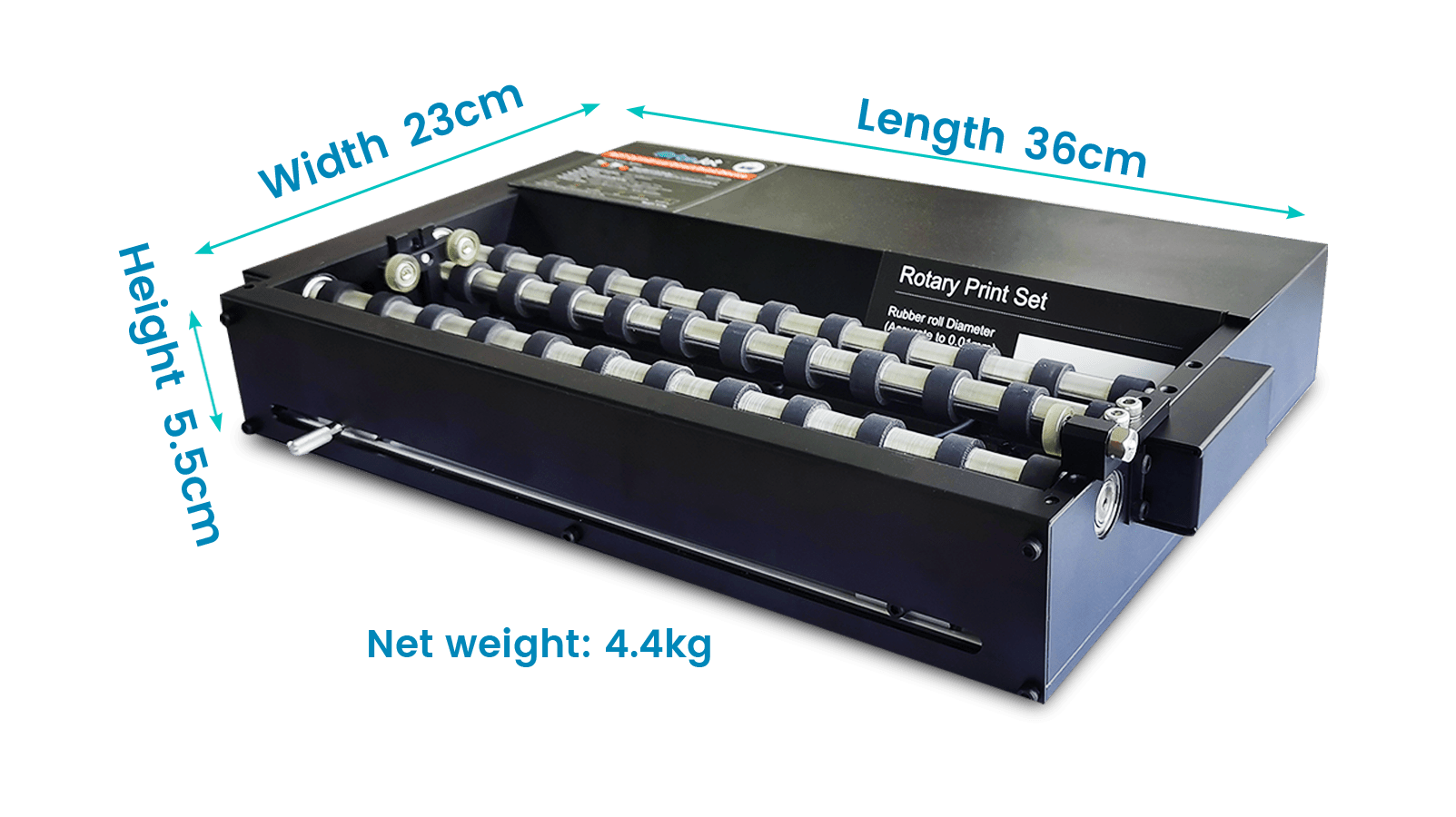

Printer Compatibility – The NEW ROT-360 printing device is fully compatible with the artis 3000U pro B3 UV LED Printer and artis 5000U B2 UV LED Production Printer.
