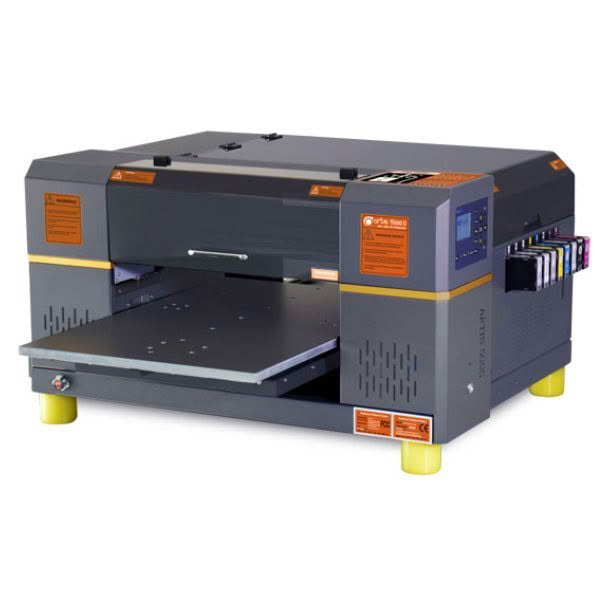

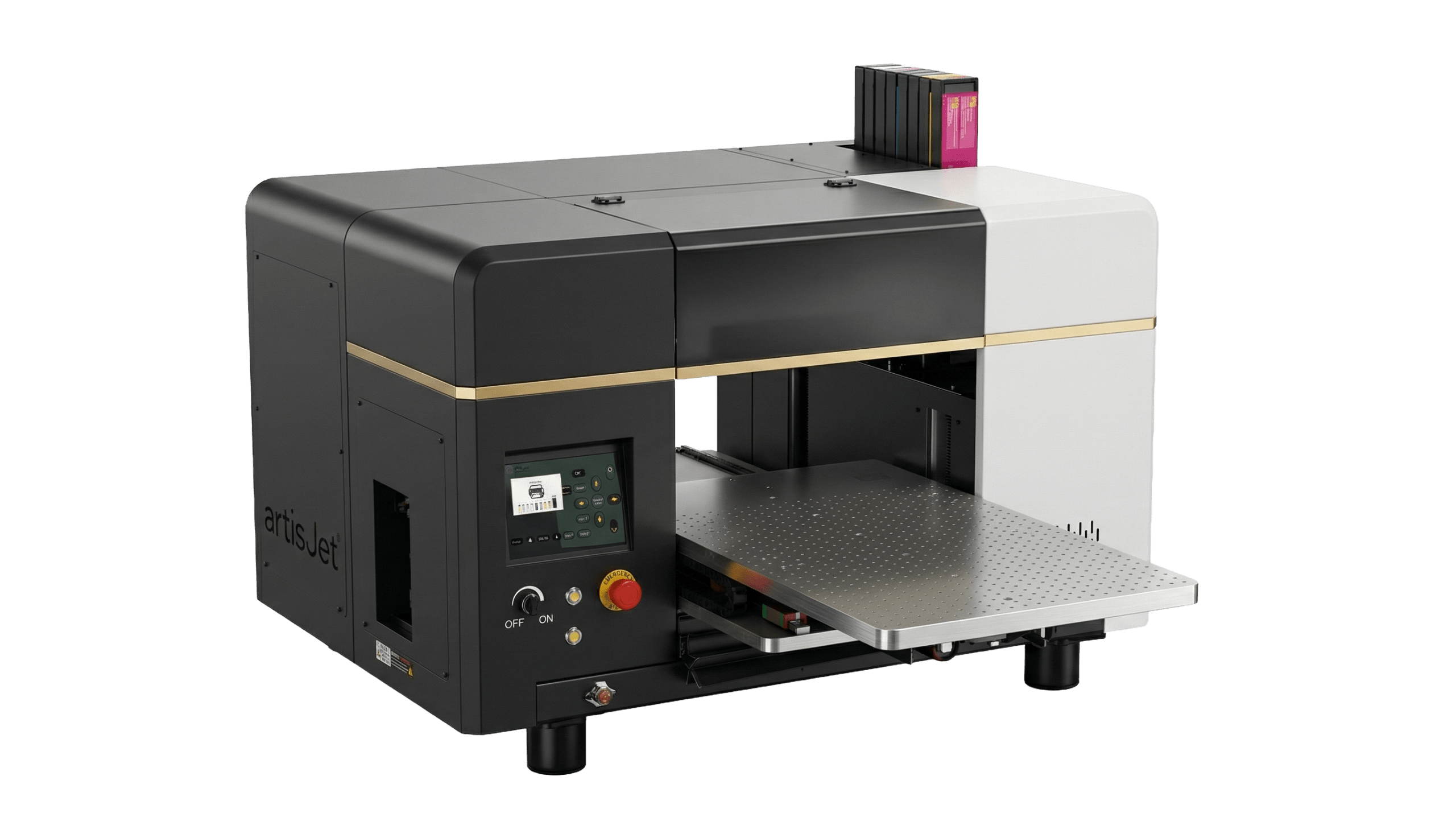

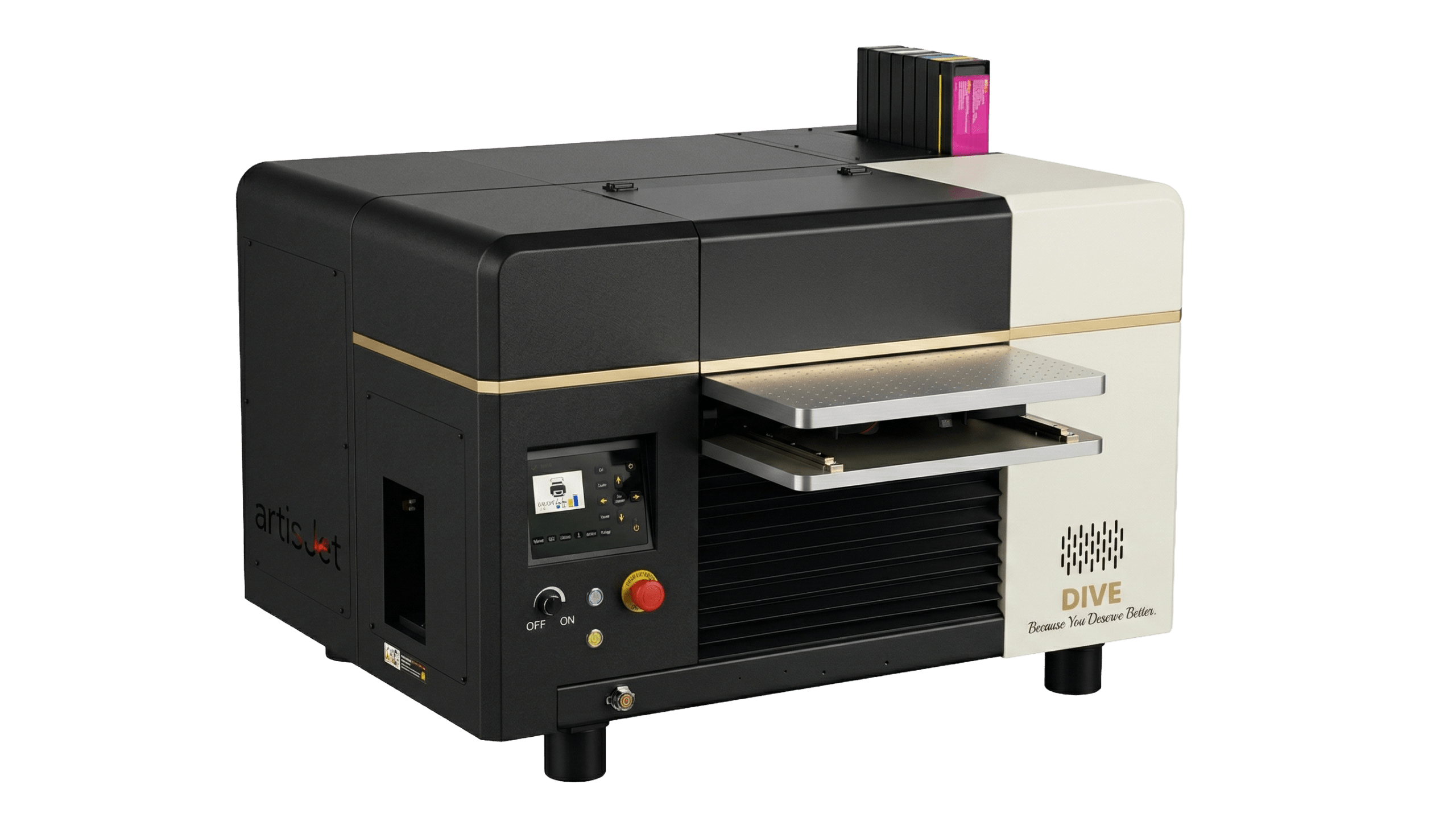

artisJet 5000U
PRINT BIGGER AND 2X FASTER
- Spot Varnish Printing availability for glossy diamond effect and matte print finish
- Braille Printing Program for ADA Compliant signs
- Fast conversion from flat printing to cylindrical printing with the optional 360 degrees rotary attachment
- Variable Data Printing support
- Direct printing on dark and transparent materials
- Optimal for printing on both rigid and flexible substrates
- Ideal for printing signage, packaging, decorations, bottle & cylindrical printing, posters, promotional items, custom travel items & luggage, candle printing and more
UPSCALED FEATURES
- ACS Automatic Command System on demand
- Automatic multiple copies print from Printing Task Queue
- One button Full Automatic Height measurement
- Optimal cost saving with the Cartridges Continuous Ink Supply System
- Automatic error checking on boot with error reporting
- Unique lateral loading architecture & simplified operation and maintenance
- Built in liquid cooling control system
- Printer customization service on demand
$34,900.00
+GST
- Print speed – 5 minutes for Full 50 * 70CM @ 720*720 DPI for 4 pass bidirection print mode
- Printing Technology – UV LED (Built in water cooling)
- Ink – artisink DTST3-UV (KCMY+WWWW/KCMY+WW+VV)
- Application – Signage, packaging, decoration (wood printing, ceramics, glass, plastics, aluminum…etc…), posters, promotional items
- Media Size – 530 x 820 mm (20.86 x 32.28 in)
- Thickness – 250mm(9.84 in) (optional) and 100 mm (3.93 in)
- Rotary Print – Optional On Demand artisJet ROT 360 degrees device
- Printing modes – 4 pass(720*720 dpi), 8 pass(720*1440 dpi), 16 pass(720*2880 dpi)
- Print Size – 500 * 700 mm
- Print Head – Epson DX7 piezo electric printhead. Made in Japan
- Nozzles – Variable dot size printing technology, starting from1.5 pl and up to 21pl
- Ports – USB2.0 / USB 3.0
- Operating systems – Windows

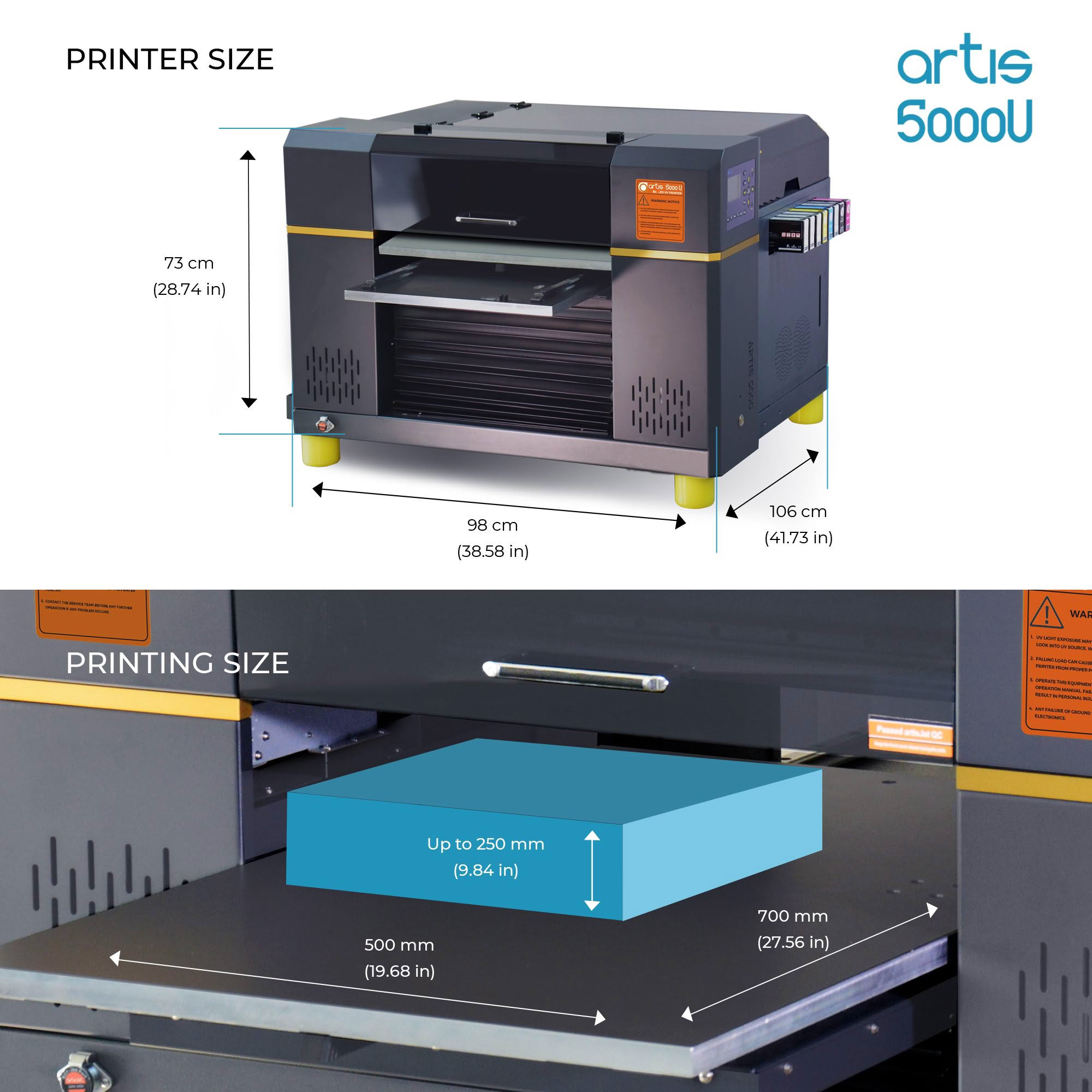

- Depth x Width x Height (Standard edition) – Printer 980 x 1060 x580 mm (38.58 x 41.73 x 22.83 in), Shipping 1160 x 1180 x 760 mm (45.66 x 46.45 x 29.92 in)
- Depth x Width x Height (High Production edition) Printer 980 x 1060 x 730 mm (38.58 x 41.73 x 28.74 in), Shipping 1160 x 1180 x 980 mm (45.66 x 46.45 x 38.58 in)
- Weight – Printer 190 Kg, Shipping 225 Kg
- Content of the box – artis 5000U U, USB cable, Power cable, User manual book, washing and ink – joiner tools, spare parts package
- Environmental ranges – 10 – 35 °
- Power consumption and requirements – AC100V~240V±10%, 0.5kVA
- Certification – CE certified
- Warranty – One year limited warranty
Flash On Ink Firing System
Intelligently powered by ArtisPrinters FOIF system, the artis 5000U printer electronically activates the UV LEDs when firing ink only. As a result, the life time of the printhead and the UV LEDs is maximized. FOIF also protects the entire ink system including the ink pump, the wiper, the damper, and the cap tops.
Continuous Ink Supply System
Unlike ink cartridges, this system allows for 100% utilization of available ink.

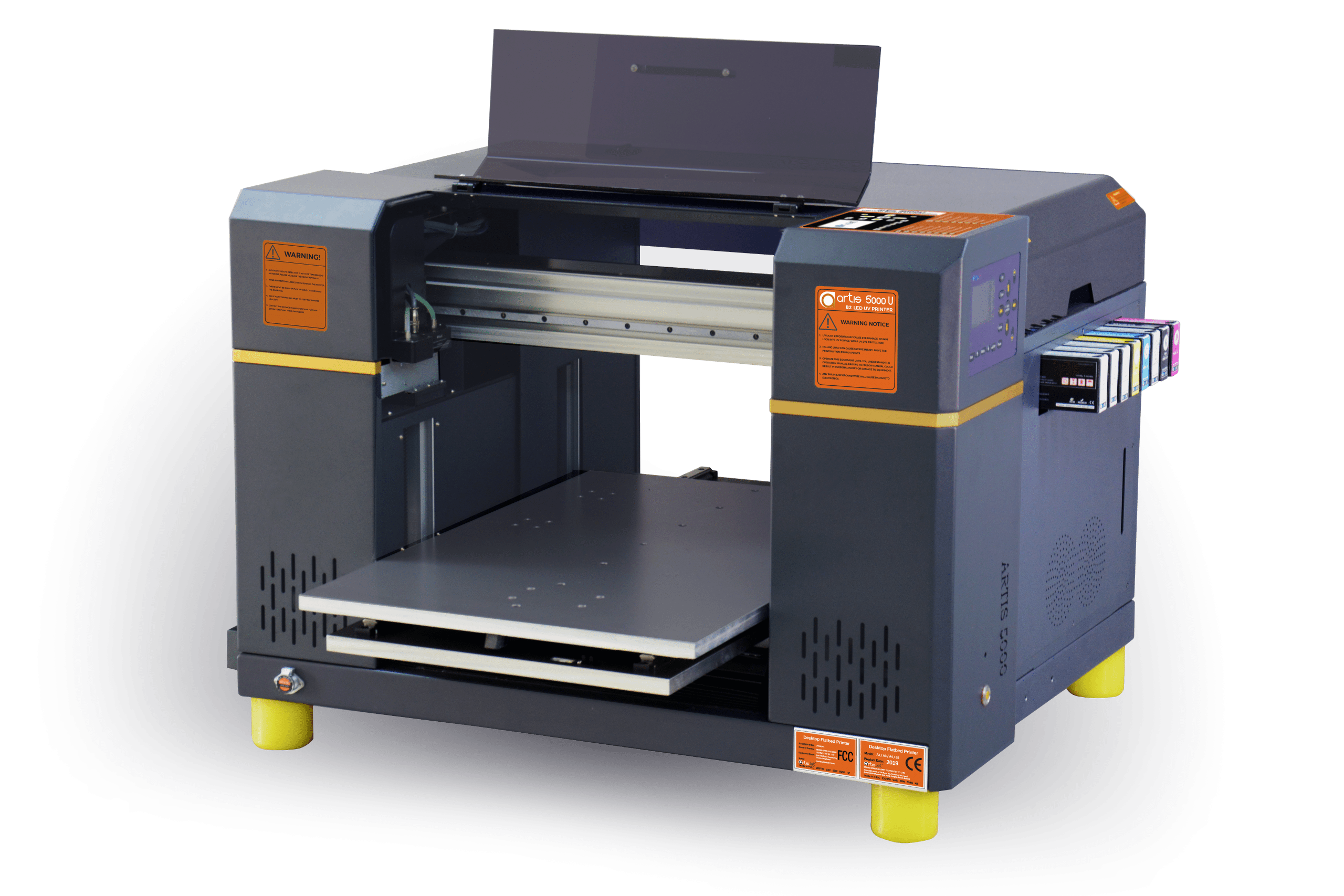

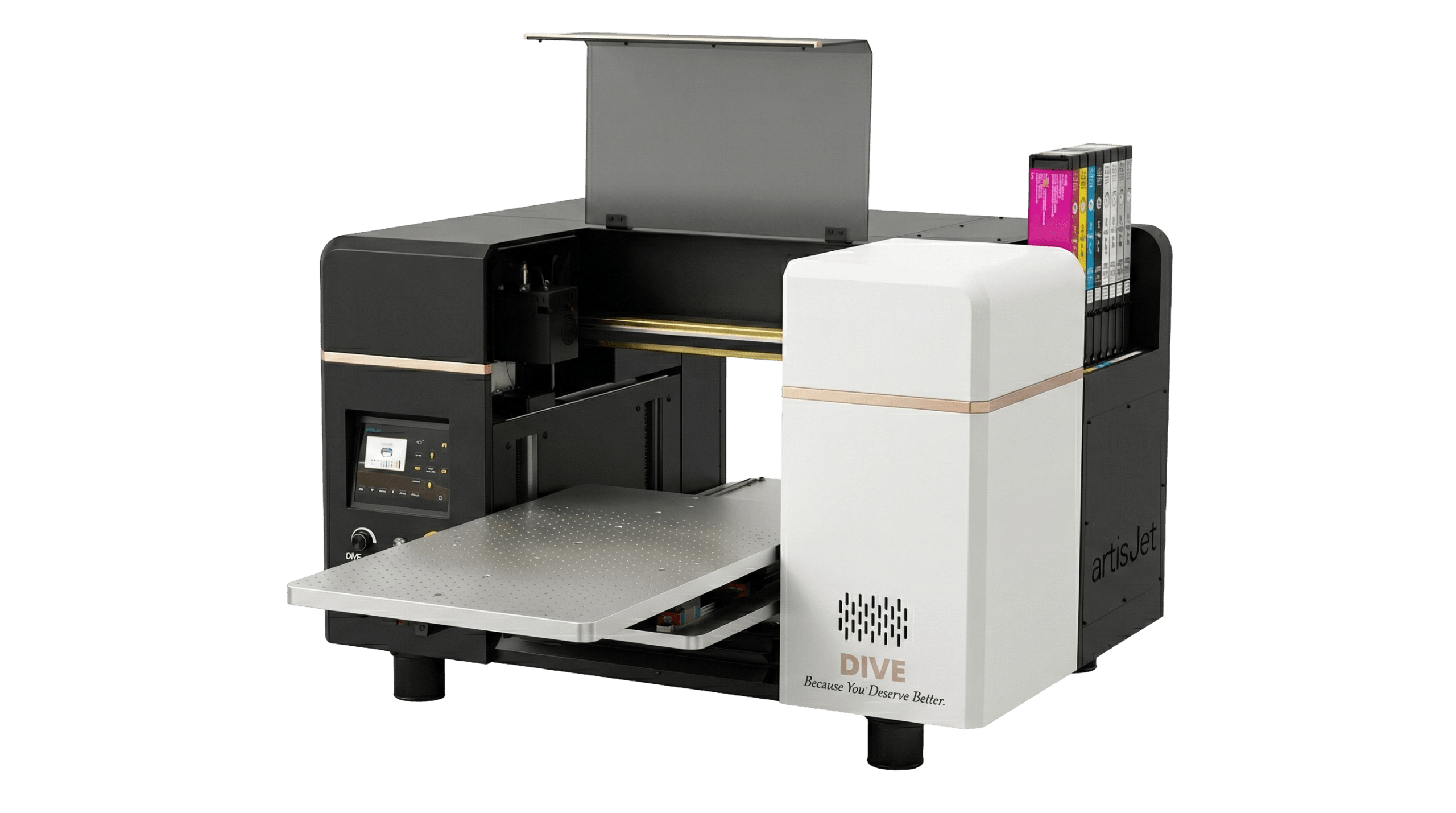

Unique lateral loading platform design
Unique design ensuring a better visibility of the output. Ideal for space constraints workplaces.
Control On Demand System
Designed for an enhanced flexibility and simplicity, brotherJet COD digitally controls the operation of the LED UV system. It automatically adapts to different materials and working environments. COD controls the UV Curing mode( Bi-directional, Uni-directional). This will result in delivering an optimal printing quality and drying time.
Safe Water Cooling Control System
Designed for operational extra safety and simplicity, brotherJet’s SWCC system is built on a digital industrial chilling system. It recycles 300ml of an industrial cooling liquid. The liquid level is visible and refillable on demand to avoid the wearout of the UV LEDs.
Self-automated printing height adjustment
Equiped with sensors to automatically adjust head height and reduce the print head strikes.
Gradient ECO UV LED Technology
Equipped with artisJet new UVGC2 UV LED clutter suppression Processor technology. The UV LED light wave varies from 365-395 and deliver the best print color durability by drying the prints in different layers.
Auto Cleaning Module
Extends the printer head life by running scheduled ink system cleaning and maintenance when the printer is idle for a period of time.
New Wave Pass Control Technology
Empowered by the wave print technology, the gradient feathering print functionality of artis 5000 U ensures the sharpness of the print output

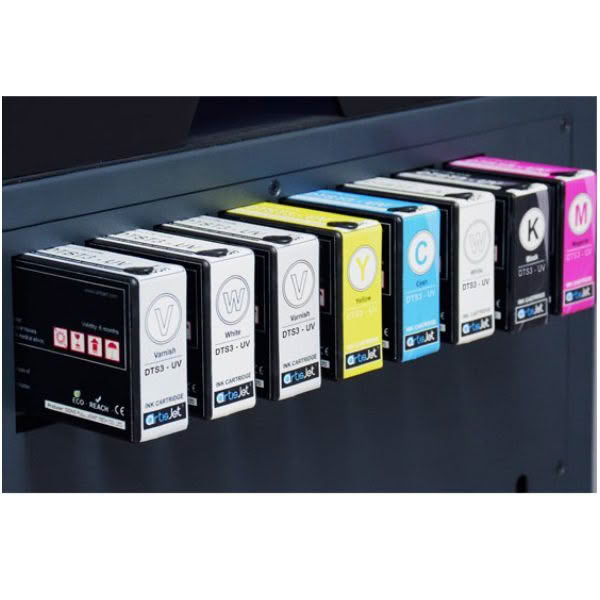

Ink
DTS3 – 200-001 Cyan UV-LED Ink DTS3, 200ml
DTS3 – 200-002 Magenta UV-LED Ink DTS3, 200ml
DTS3 – 200003 Yellow UV-LED Ink DTS3, 200ml artis
DTS3 – 200004 Black UV-LED Ink DTS3, 200ml
DTS3 – 200-005 White UV-LED Ink DTS3, 200ml
DTS3 – 200-006 Varnish UV-LED Ink DTS3, 200ml
Cleaning Agent
BRCA-U-1000-001 Cleaning agent for LED UV inks, 1000 ml
BRCA-U-500-001 Cleaning agent for LED UV inks, 500 ml
BRCA-U-200-001 Cleaning agent for LED UV inks, 200 ml
Fixing Agent
BRCA-U-1000-001 Fixing agent A/B liquids for UV LED inks, 1000ml
BRCA-U-500-001 Fixing agent A/B liquids for UV LED inks, 500ml
BRCA-U-200-001 Fixing agent A/B liquids for UV LED inks, 200ml
Specifically designed for artisJet’s UV direct to print systems, ARTISRIP offers a simple and user friendly intuitive interface.
ArtisRip main features are
Layout platform
- Layout editing platform, resize, mirror, text, color adjustment, color gamut check..
- Raster and vector images support
- Built in customizable print templates for printing pens, phone covers, lighters, wood cases, etc…
- Previewing and smart nesting
Print Engine
- Vivid color reproduction
- Simultaneous printing to multiple print devices
- Simultaneous White and CMYK printing
- Color then White print mode
- White then color print mode
- Support for jpg, tif, bmp, png, ai and pdf image files
- Color management engine base with ICC profiles support
- Individual ink channel adjustment
- Automatic white ink trapping
- Feathering rendering mode (elliminates banding, enhances color transitions)
- Direct printing from common graphic software.(CorelDraw, Photoshop, Autocad…)
