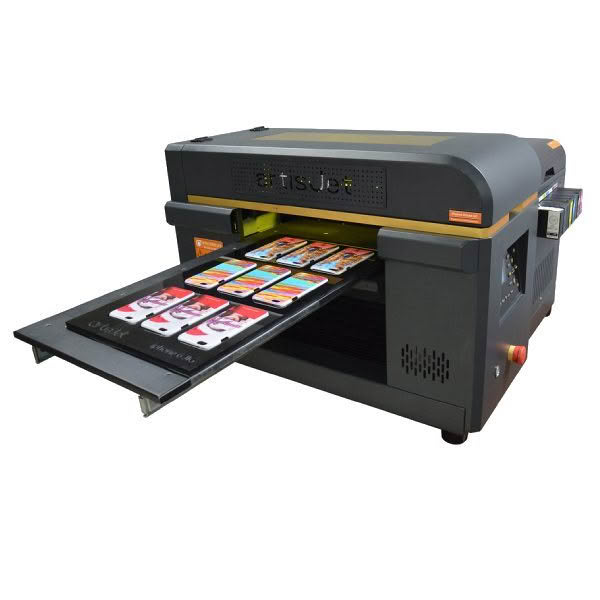

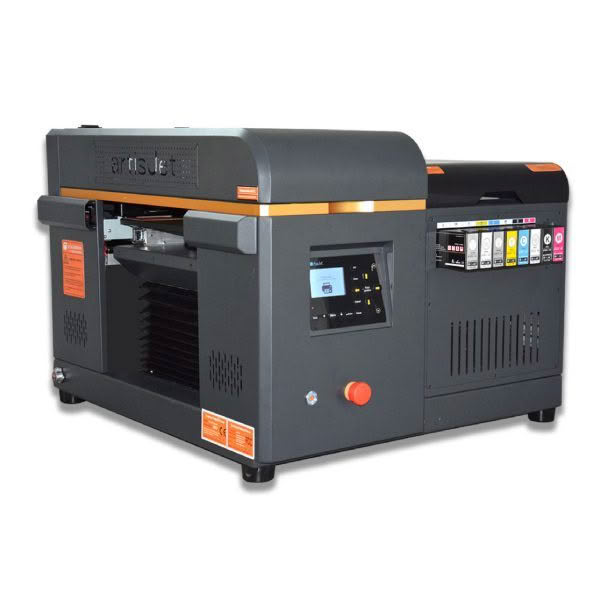

artisJet 3000U Pro

+GST

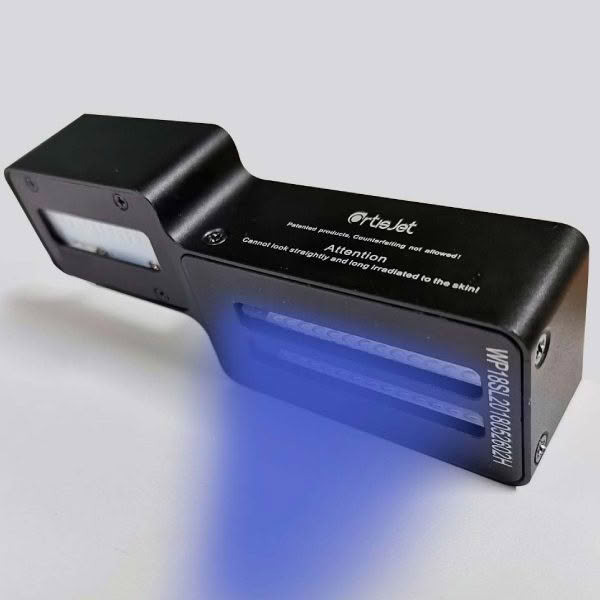

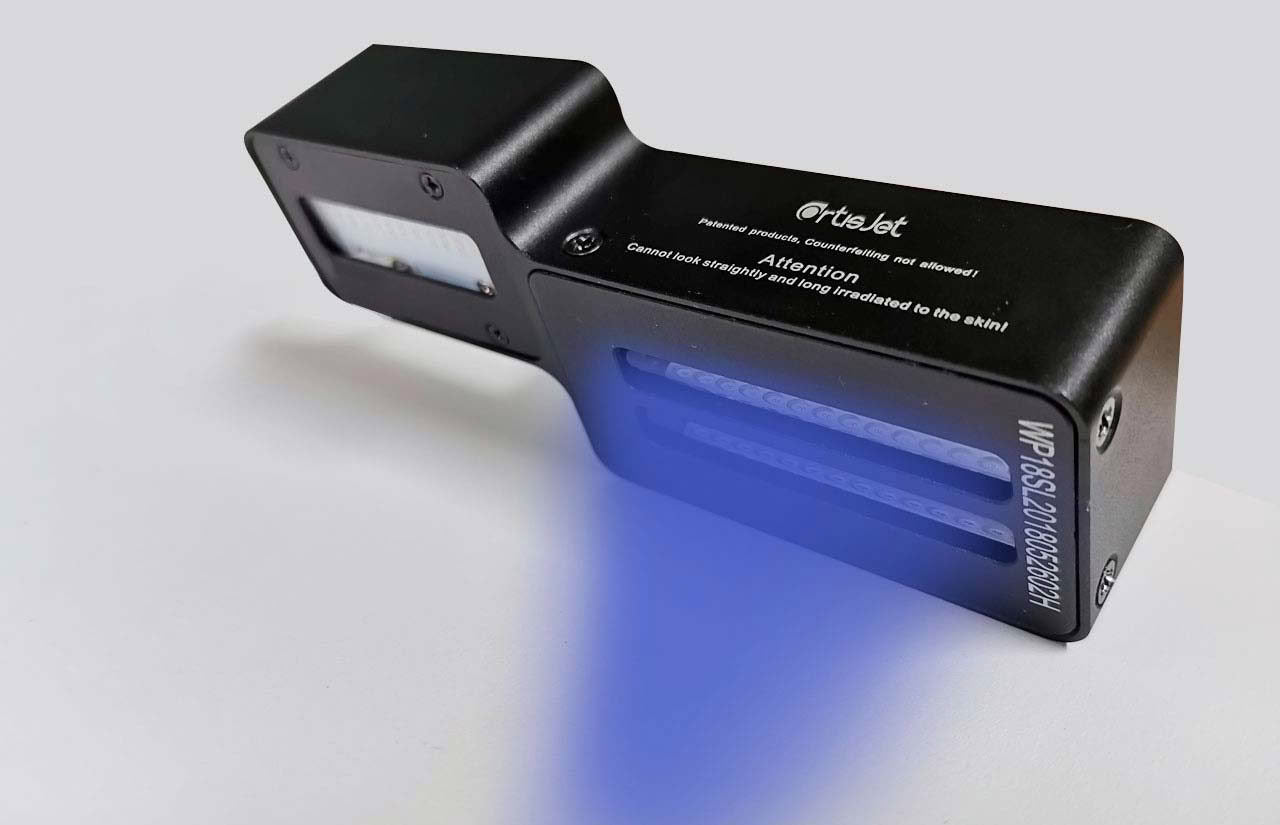

Maximizing the UV power yet extending the printer head life

Applied Convex UV lens design, to maximize the power of the UV yet avoid damage to the printer head from light spray.

Raise the print accuracy

Applied Close-Loop electronic control system in Y axis, keeping the step accuracy within 1um.

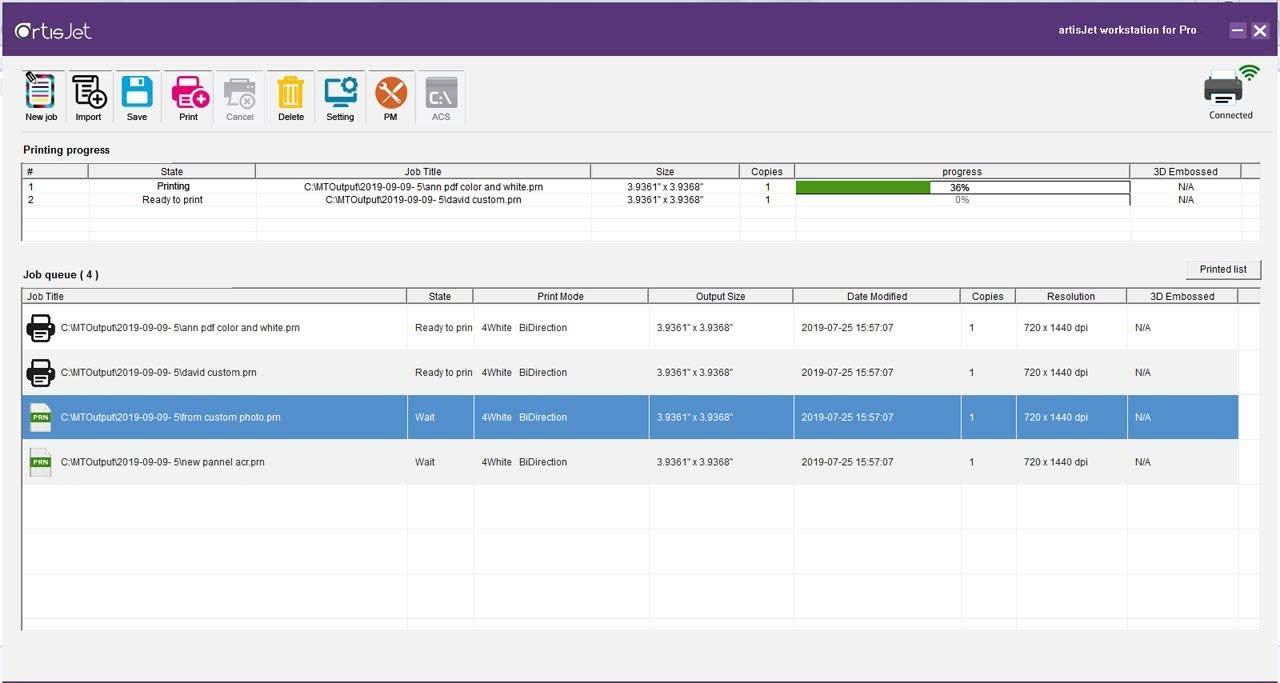

Easy job management yet powerful functions. Set your print copies, print results, RIP at one click.

One-click printing is extremely convenient to use, Do not need cumbersome operation, upload a good picture, the need to print the items placed on the printing plateform, start to print. Support API on demand(Cloud printing systems) and multiple tasks on queue.

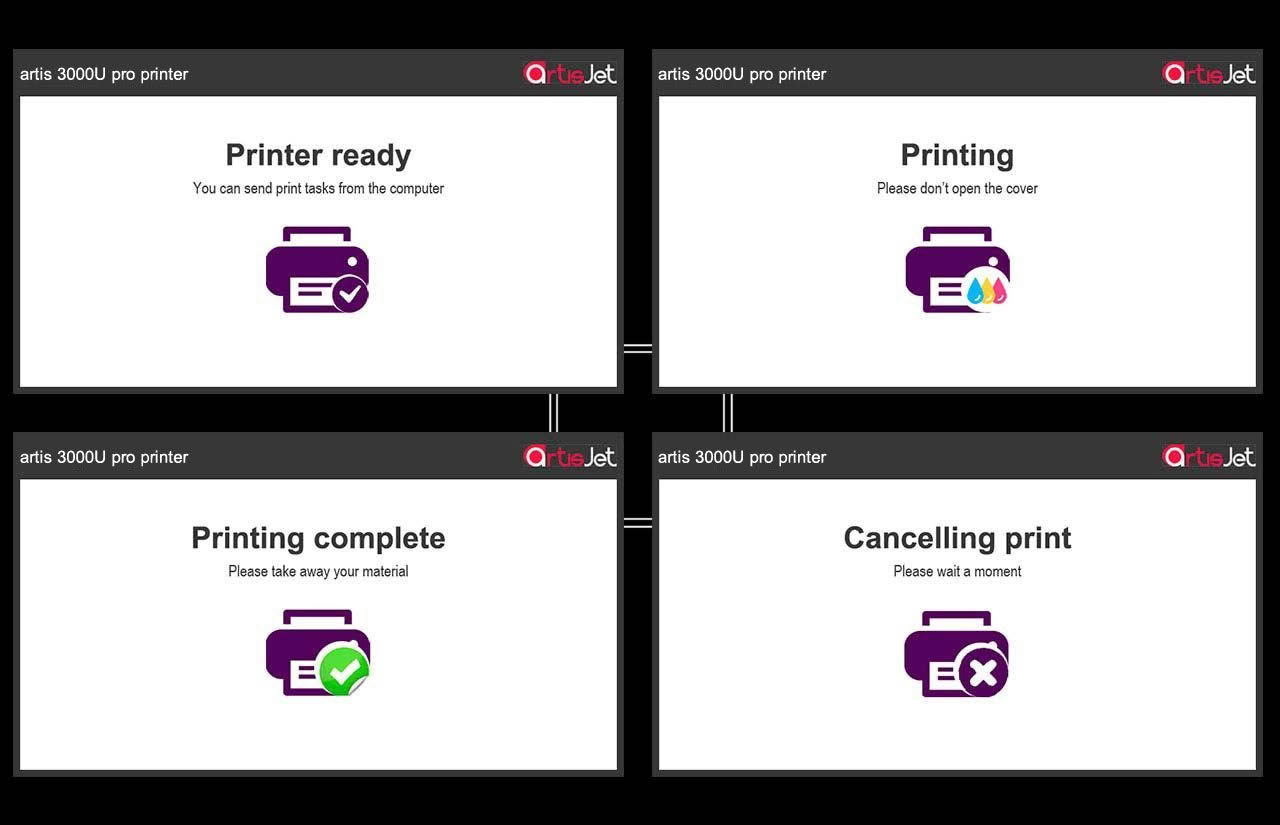

User friendly control system. Your print is visible

Design your own workflow to Increase your production

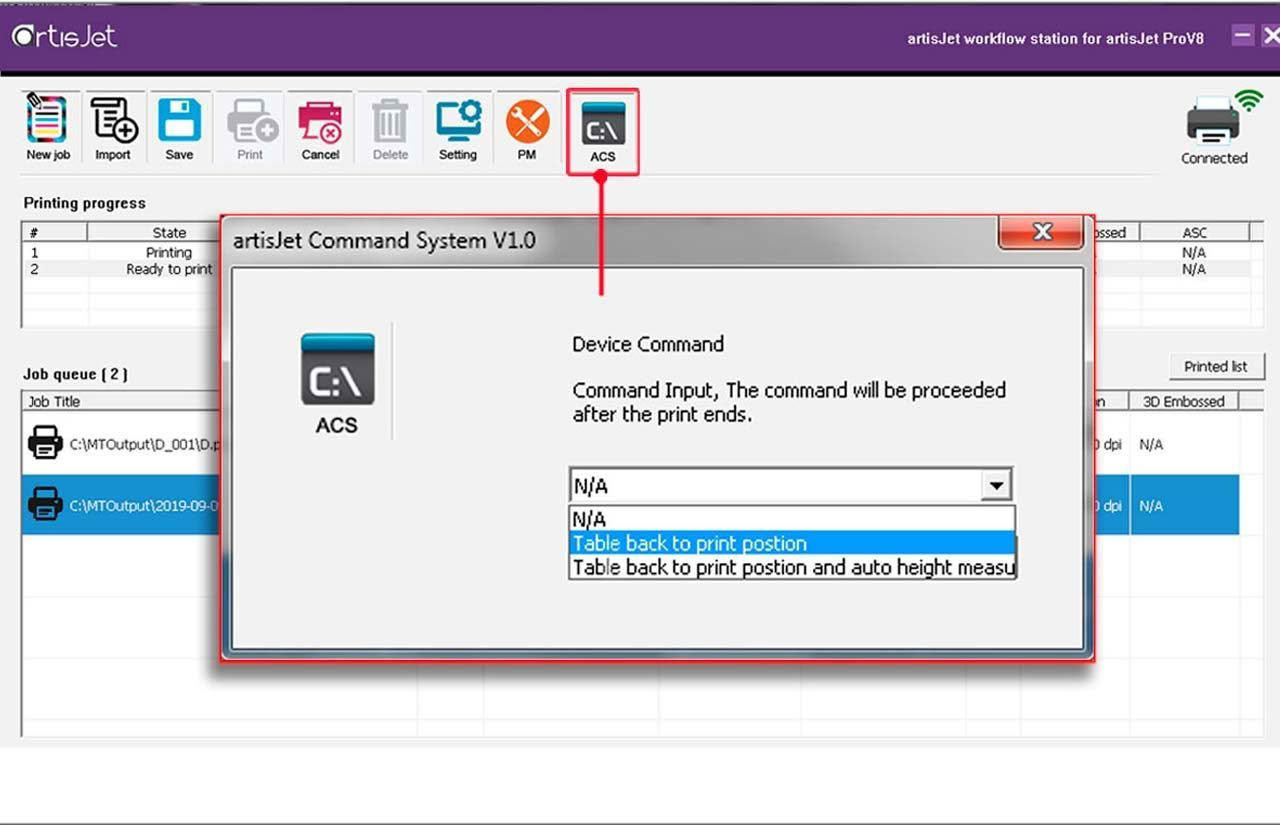

Empowered by ACS (Automatic Command System), you are able to command your own printer.

Print is limitless

Design and print your 360.

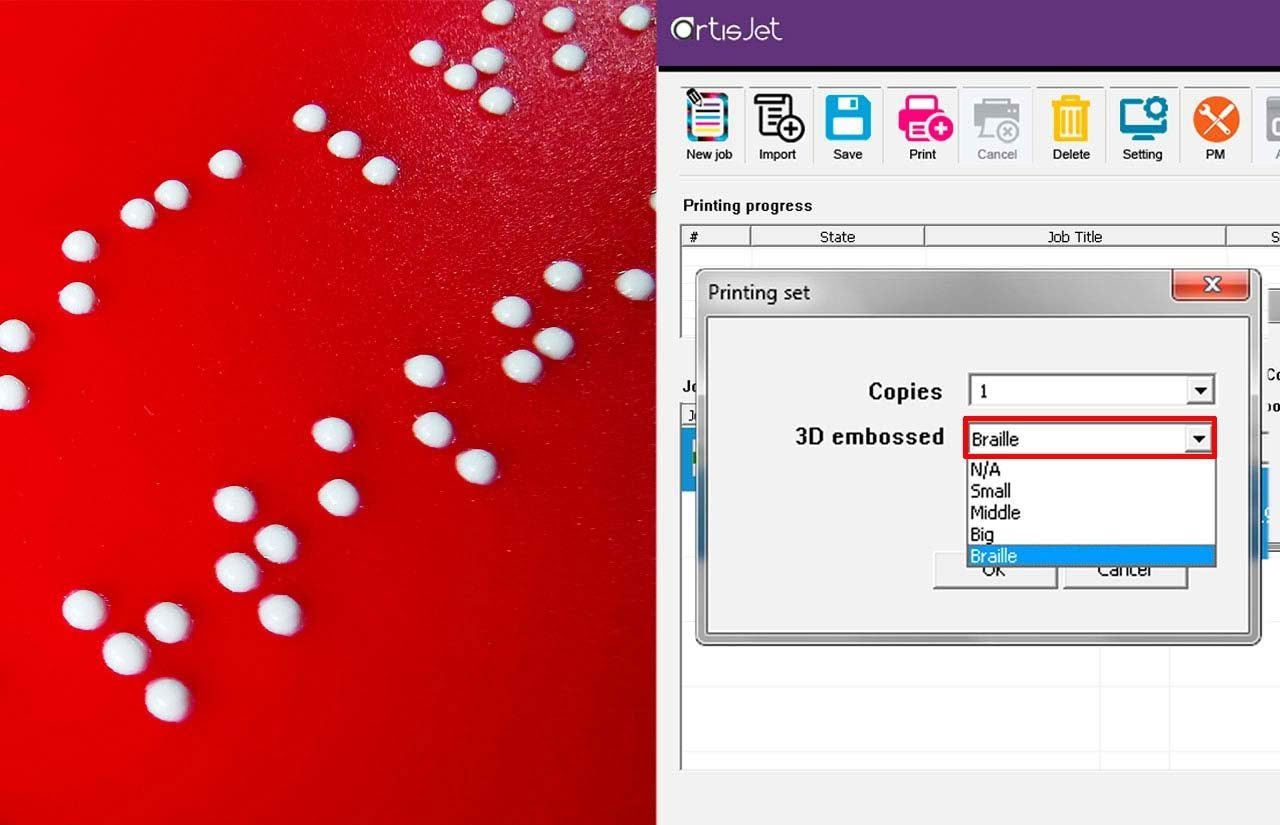

ADA Braille is easy

You are empowered by latest technology to create customs ADA signs in one click

Make your job outstandingly shining

Increase the highlight of your prints by latest Spot varnish print technology.

Enjoy your leisure time

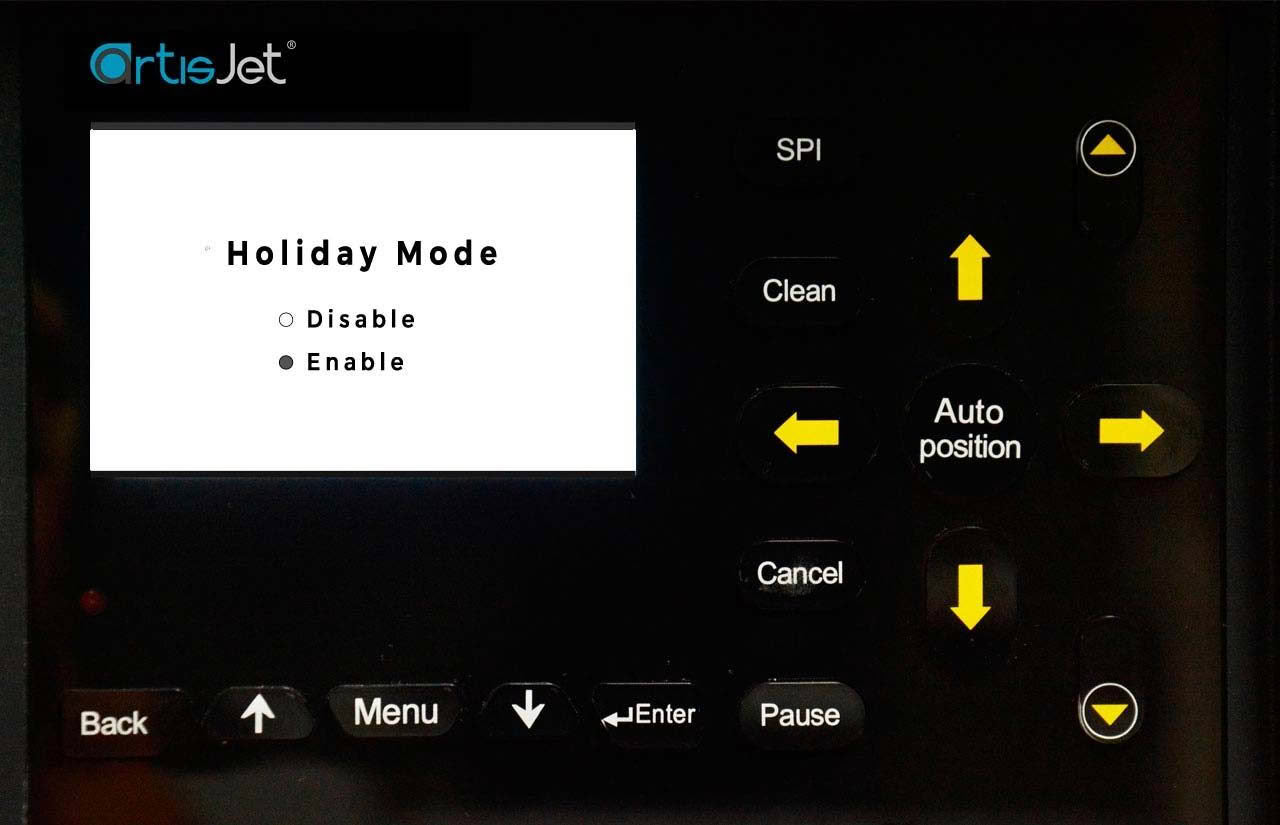

Holiday mode allows the users to set on demand for automatic ink system maintenance.

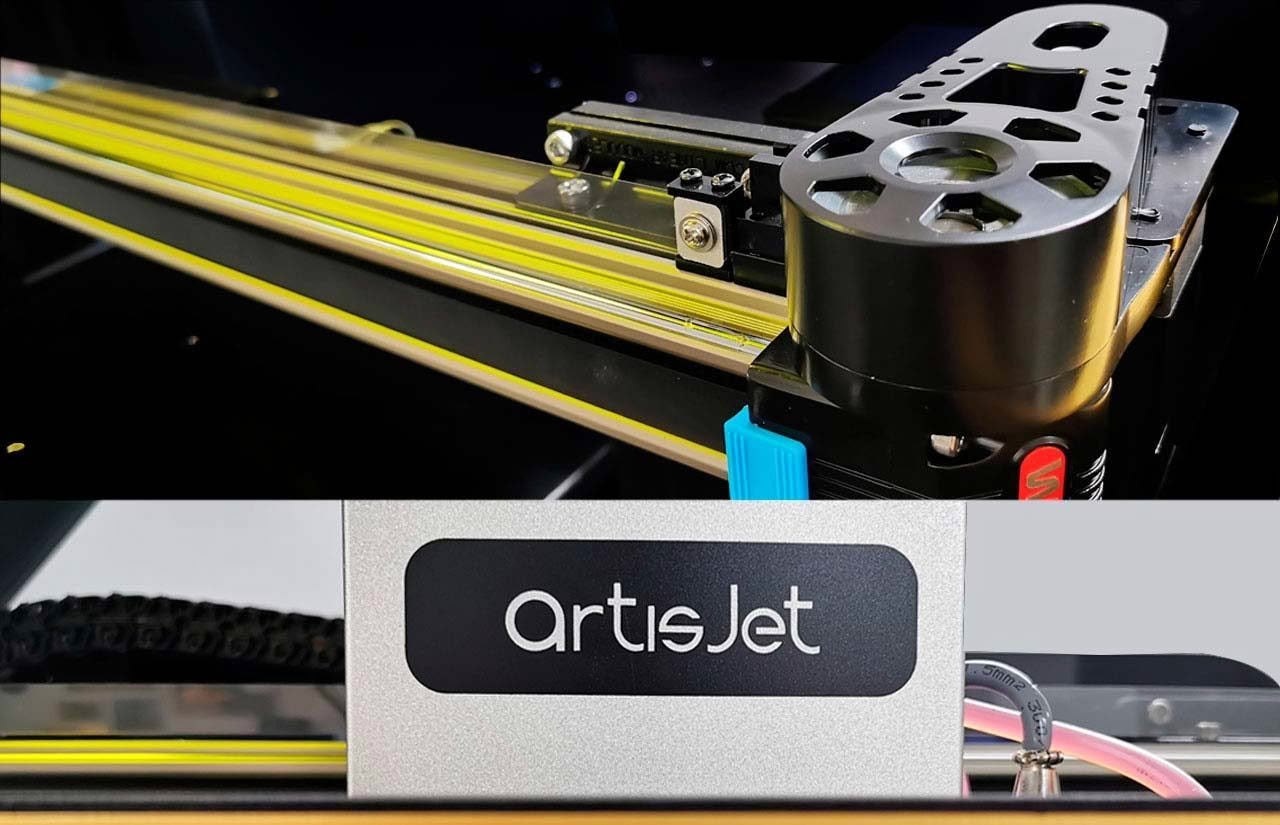

Extending the ROI of your investment by industrial design

Industrially designed print platform to maximize the life of the uv printers.

Printing Specifications

• Print speed A4 size @2880*720dpi / Unidirection – 460seconds / Bidirection – 245 seconds
• Printing technology – UV LED (Built in water cooling)
• Ink Channel options – 6 Color head(CMYK+WW), 8 Color head(CMYK+WWWW) / (CMYK+WW+VV)
• Applications – AD materials, signage, awards printing, small packaging, gift boxes, corporate gifts, promotional items, gadgets and smartphone accessories etc.
• Media Size – B3, 380*670mm (14.96 x 26.37 in)
• Media Thickness – Up to 170mm(6.69 in)/Customization available
• Rotary Print – On Demand artisJet ROT 360 degrees device
• Printing Size – B3, 360 x 500 mm (14.17 x 19.68 in)
• Printing modes – 4 pass, 8 pass, 16 pass
• Print Resolution – Up to 720 x 2880 dpi
• Print Head – Epson DX7 on demand micro-PieZo
• Weight – 120Kg, Shipping 146 Kg
• Depth x Width x Height – Printer 940 x 840 x 540 mm (37 x 33.07 x 21.25 in),
• Shipping – 1040 x 1040 x 720 mm (40.94 x 40.94 x 28.34 in)/td>
• Environmental ranges – 50oF to 95oF (10oC to 35oC)
• Power consumption and requirements ~75W, Input voltage (auto ranging) 110V/220V 50 – 60 HZ
• Ports – USB 2.0 / USB 3.0
• Operating systems – Windows xp / win7 / win8 / win10
• Certification – CE / FCC / RoHS / REACH / HC certified
• Warranty – 2 years warranty
